10-30T Wheat Flour Production Line

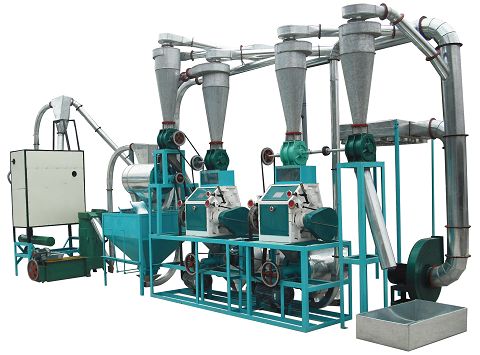

10t/d wheat flour production line



Main Technical Parameters:

Capacity: 10t/d
Material: wheat
Dimensions: L×W×H=6.6mx3.8mx3.5 m.
Power consumption: 25 kw; voltage: 380V-50HZ-3 phase.
Wheat flour standard: The flour can be modified to various market requirements including F1, F2 and standard flour.
Supporting machines: combined cleaning machine, sifter,scourer, destoner, damper, purifer, wheat flour mill, separator and filter.

Features of 10T Wheat Flour Production Line

• All machines in this wheat milling process line are compact in structure and elegant in appearance.

• The whole line adopts advanced material that make sure the machines can serve a long time, according to our tests and customers’ feed back, machines in this wheat milling processing line can last at least 25 years.

• Though this is a complete wheat processing line with many single machines, it is easy to install and operate just by watching our guide video. At the same time, the maintenance will be easier.

• 10T wheat flour production line is a small line that cost low but earns much, it doesn’t need much man power and takes less spaces, it is very suitable for small workshop or family business.

10T wheat flour production line is a small scale wheat flour production line that can produce 10T wheat flour per day. Although it is small, it is fully equipped. A cleaning machine is equipped to remove straws, dust and stones out of wheat, a screen room with sifter and scourer, two destoner and one damper machine. The purifer adopts two sets of 6FY-35 style wheat flour mills, three reel separator sets and one air filter set.

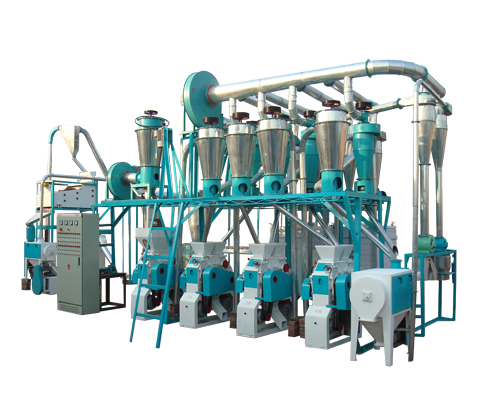

20-30t/d wheat flour production line

Main Technical Parameters:

Capacity: 20-30t/d
Material: wheat
Dimensions: L×W×H=16mx5mx4.5m.
Power consumption: 60 kw; voltage: 380V-50HZ-3 phase.
Wheat flour standard: The flour can be modified to various market requirements including F1, F2 and standard flour.
Supporting machines: cleaning sieve, wheat threshing machine, destoner and washing machine, magnetic selector, wheat milling machine, plansifter, bran brusher, flour elevator, fans, airlocks r.

Features of 20-30T Wheat Flour Production Line

• The wheat cleaning part adopts the technology of 1 time sieving, 1 time threshing, 1 time of stoning, 1 time of magnetic selecting and 1 time of washing.
• While wheat milling part adopts the technology of 4 times of bran milling, 1 time of core milling, 1 time of bran brushing and grading outside sieve.
